Description
Wacker Neuson 2503 Crawler Excavator Parts Catalog SN from AD01502 AE00434 v6.4 provides technicians and fleet managers with the precise data required for accurate component identification and procurement. Utilizing this factory-authorized catalog eliminates guesswork during the repair process, ensuring that every replacement part matches the original equipment specifications for the designated serial number range.
- Expanded Serial Number Coverage: Valid for units starting at AD01502 and AE00434, ensuring compatibility with your specific machine configuration.

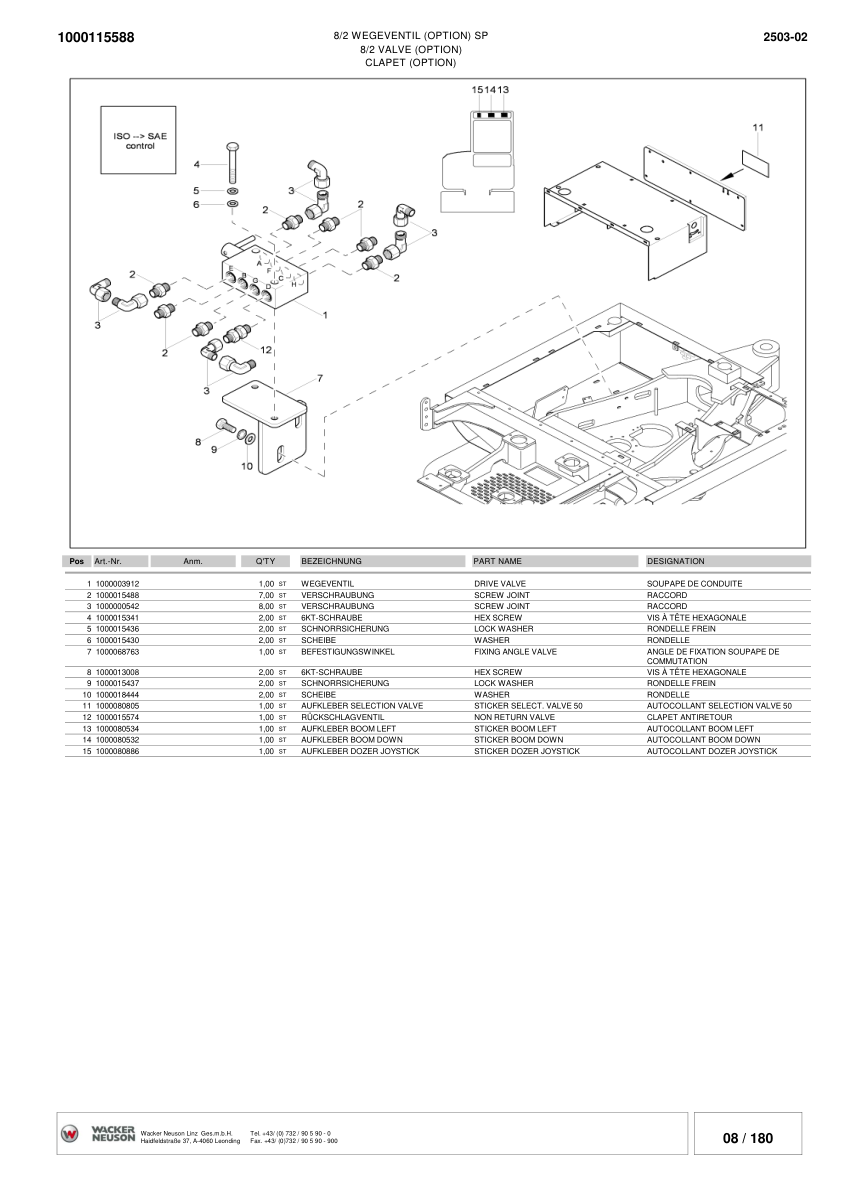

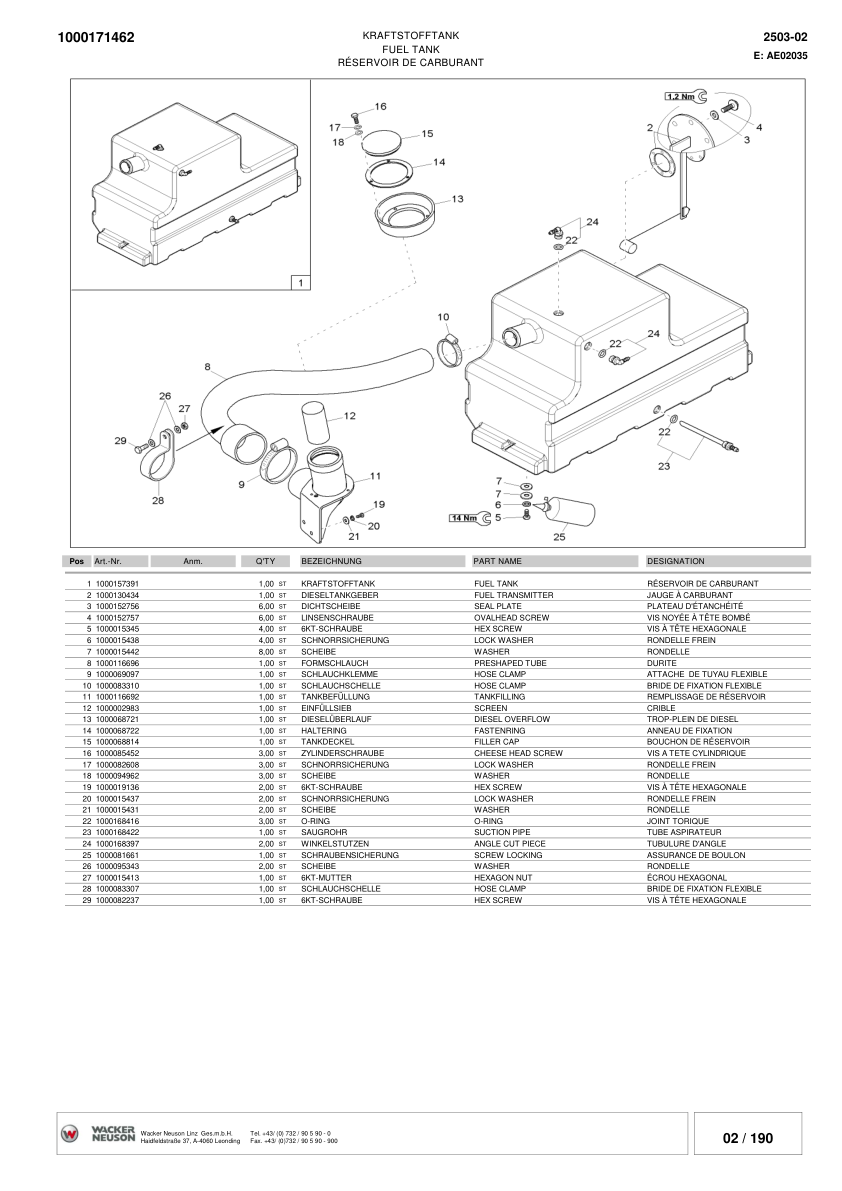

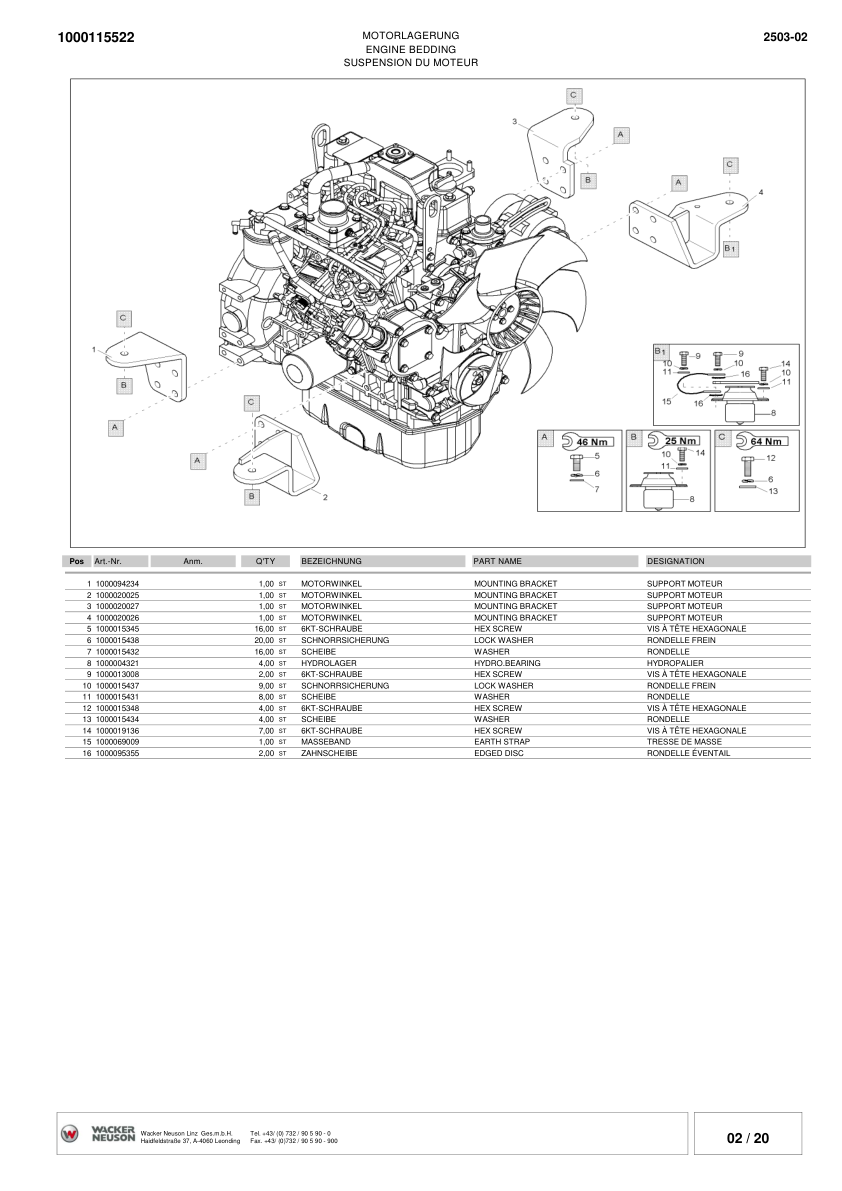

- Detailed Exploded View Diagrams: Visual breakdown of hydraulic, engine, and undercarriage assemblies allows for faster diagnosis and assembly sequences.
- OEM Part Number Indexing: Cross-references every nut, bolt, and hydraulic cylinder to the exact manufacturer identifier, preventing downtime caused by incorrect ordering.
This document streamlines the maintenance workflow by providing a comprehensive structural map of the 2503 crawler excavator. Accessing these schematics facilitates more efficient service cycles and ensures that internal systems are maintained according to factory standards. Technicians can verify component compatibility immediately, reducing turnaround times for critical repairs and equipment overhauls.
