Description

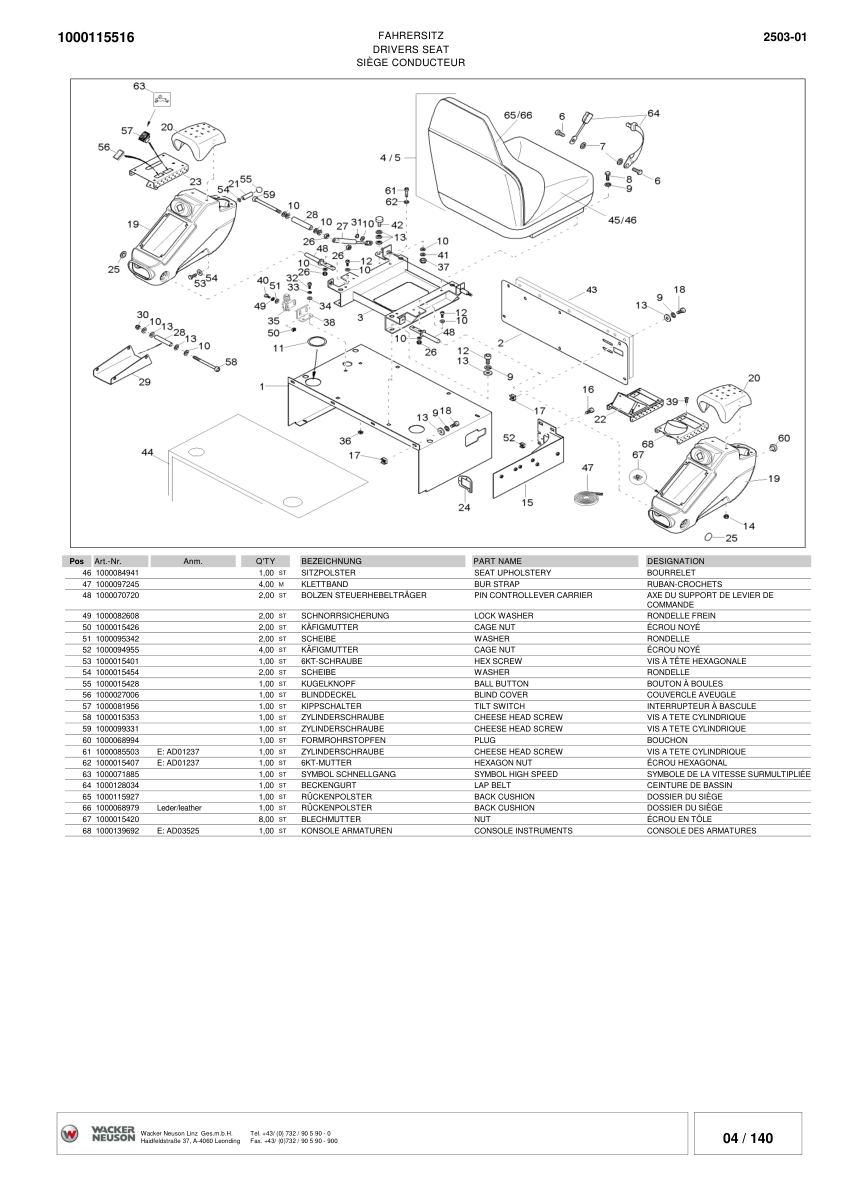

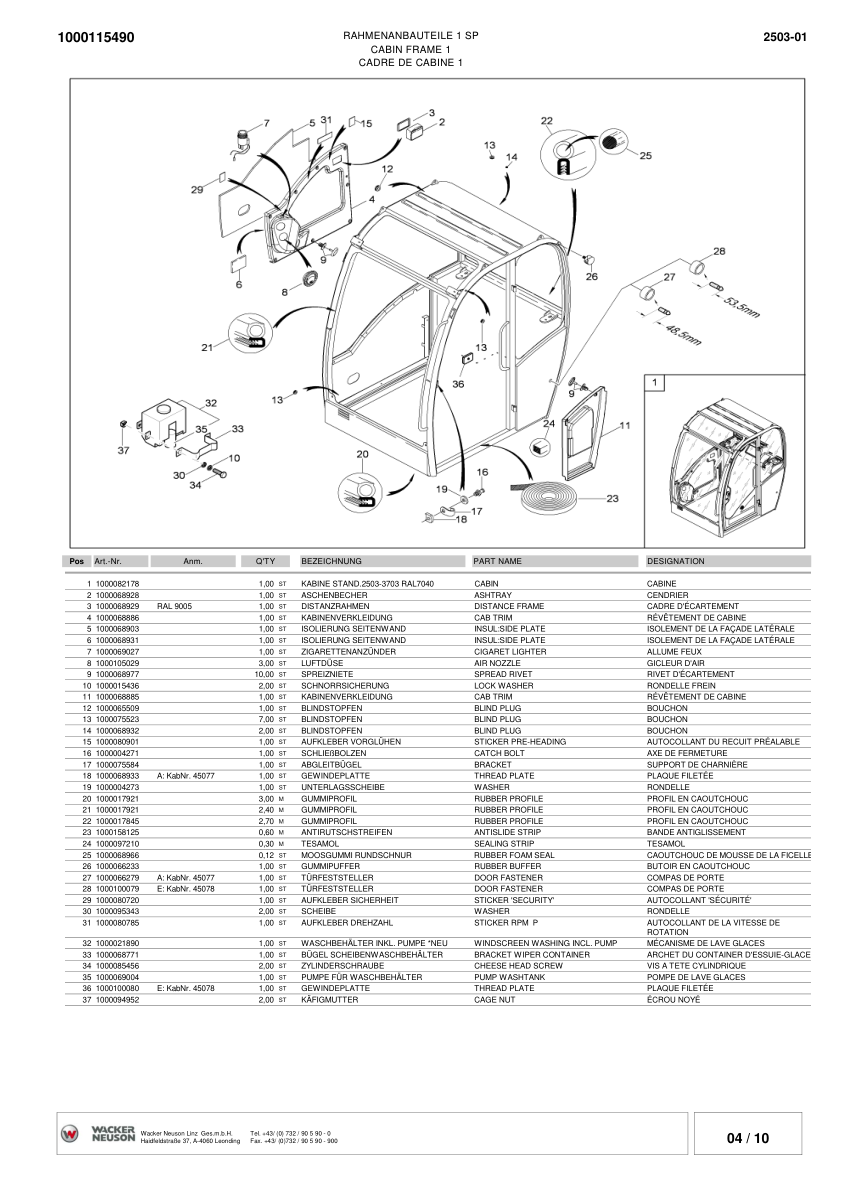

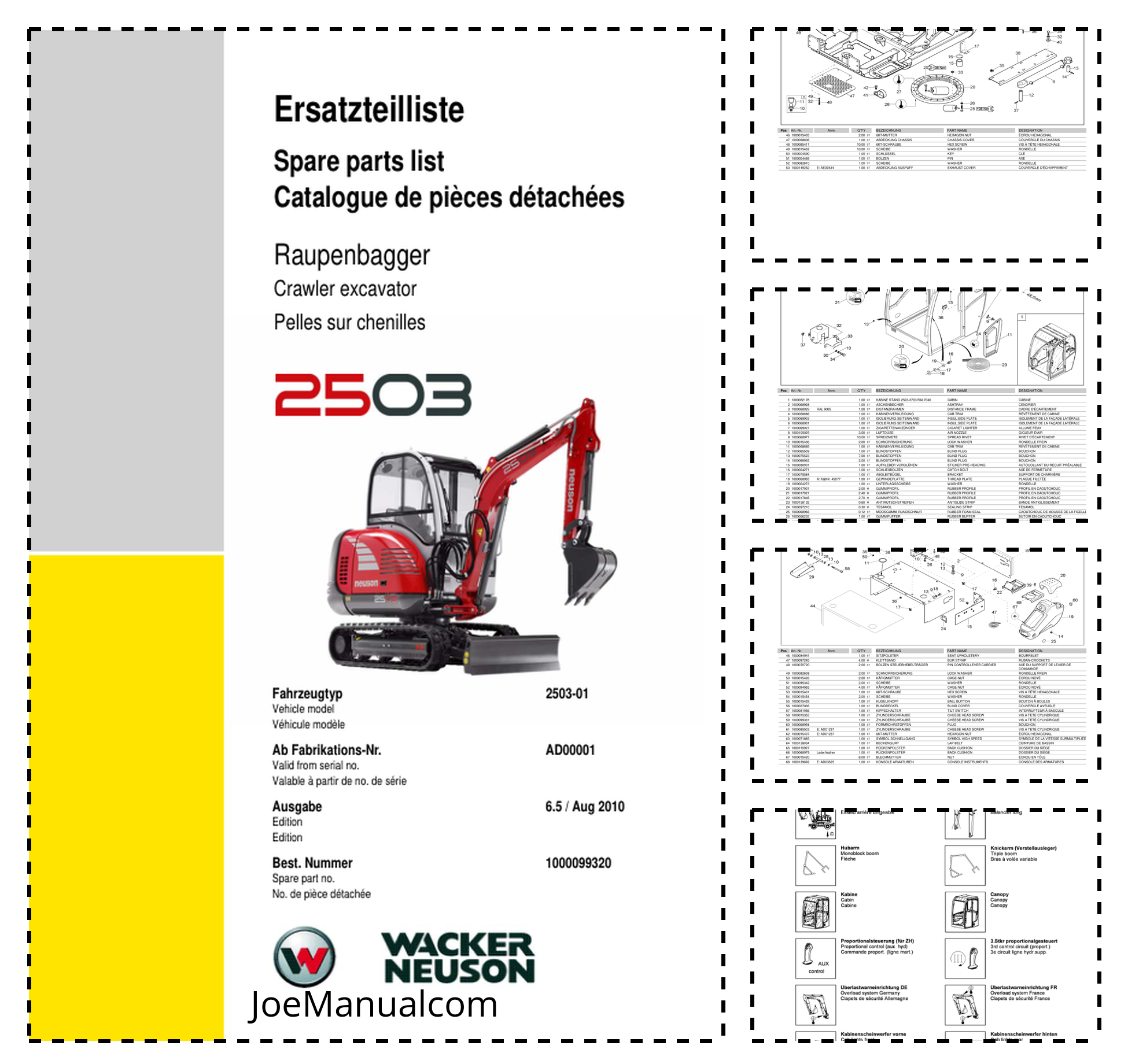

Wacker Neuson 2503 Crawler Excavator Parts Catalog SN from AD00001 v6.5 provides precise identification for every field replaceable component within the machine architecture. Technicians access exploded view diagrams to locate specific hardware assemblies and internal parts, ensuring correct ordering and assembly. This documentation eliminates guesswork during repair cycles by displaying the exact spatial orientation and fastening sequence of original equipment components.

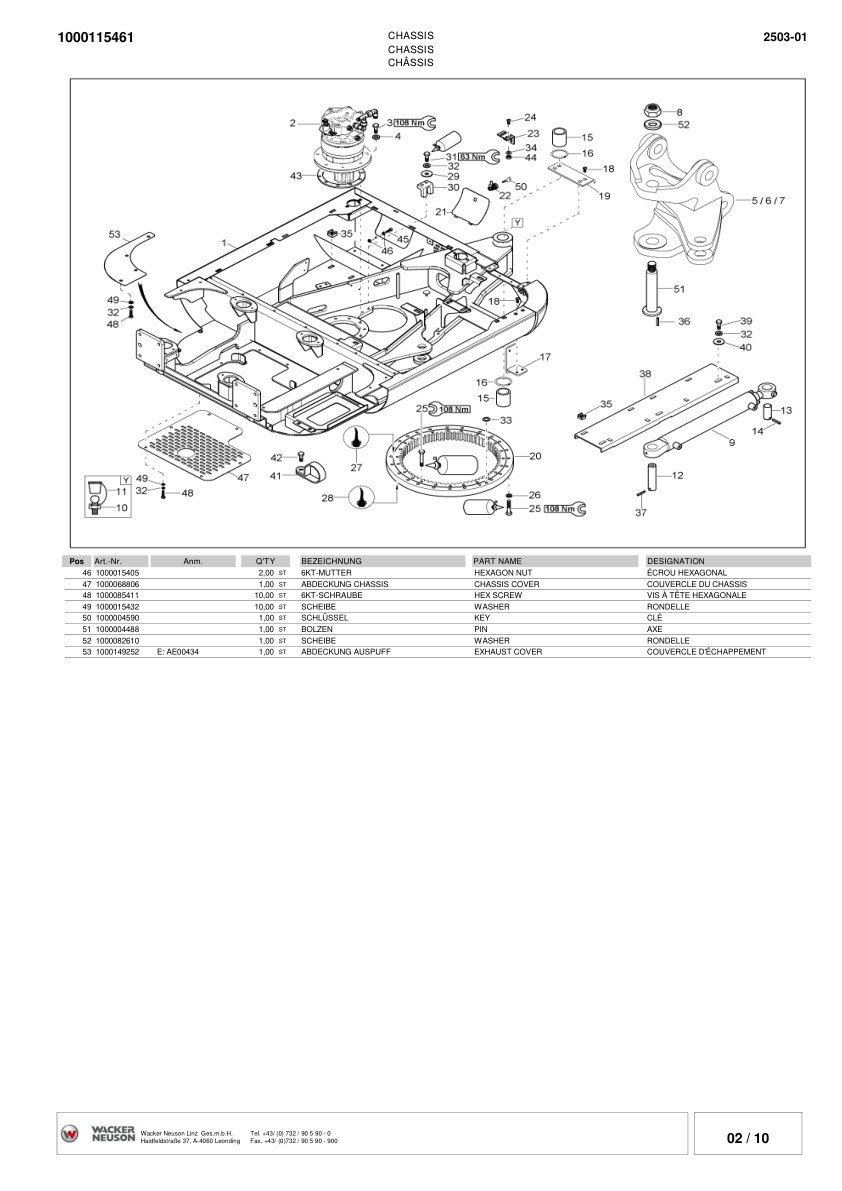

- Comprehensive Component Mapping: Includes detailed exploded views for chassis, hydraulic, and engine systems to prevent part mismatch errors.
- OEM Specification Verification: Contains verified part numbers for units starting at serial number AD00001, streamlining the supply chain and procurement process.
- Technical Assembly Clarity: Features structured breakdowns of sub-assemblies to simplify complex troubleshooting and component installation tasks.
Engineered specifically for the 2503 crawler excavator, this manual ensures maintenance personnel maintain equipment integrity. Rely on verified manufacturer data to reduce machine downtime and improve service accuracy on every job site.
