Yanmar YB401 U Excavator Parts Manual Wiring Diagram provides technicians with the technical data required to perform precise component identification and electrical system diagnostics. This documentation ensures service personnel can locate exact replacement part numbers and trace complex circuit paths to minimize equipment downtime.

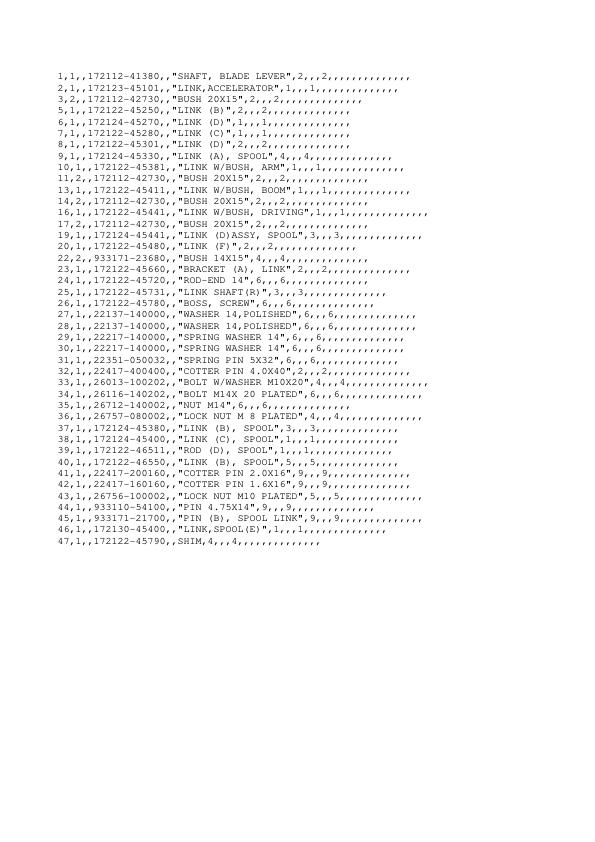

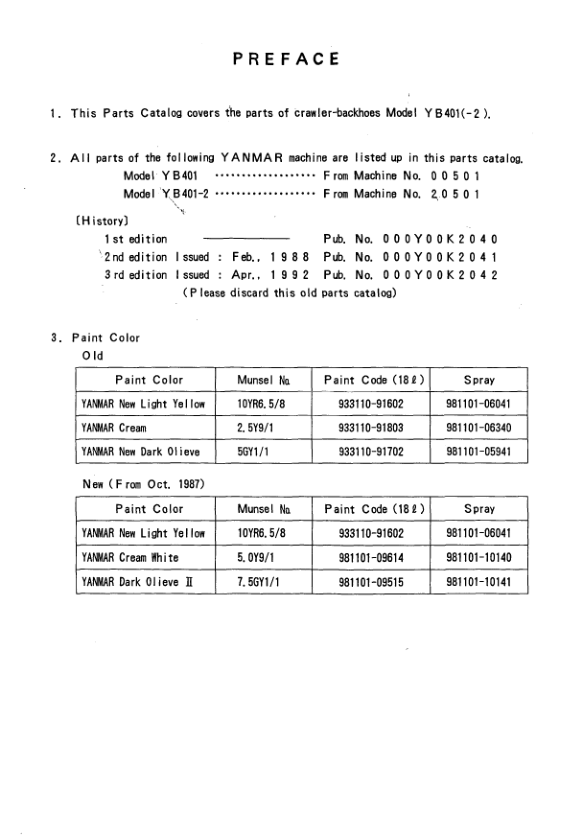

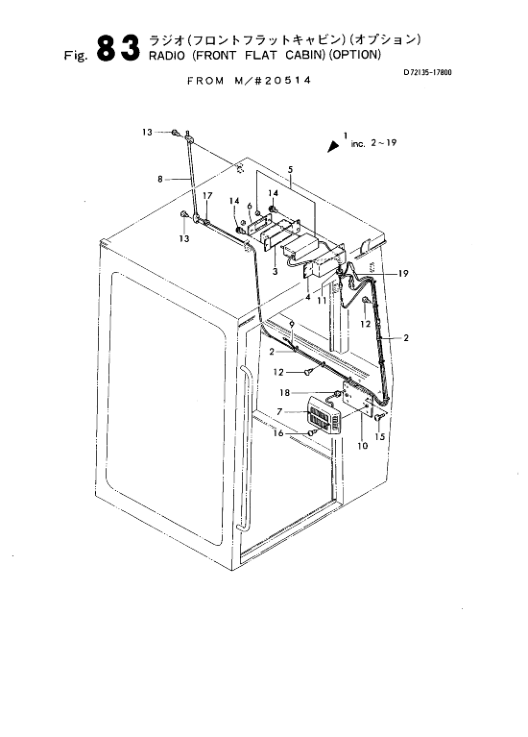

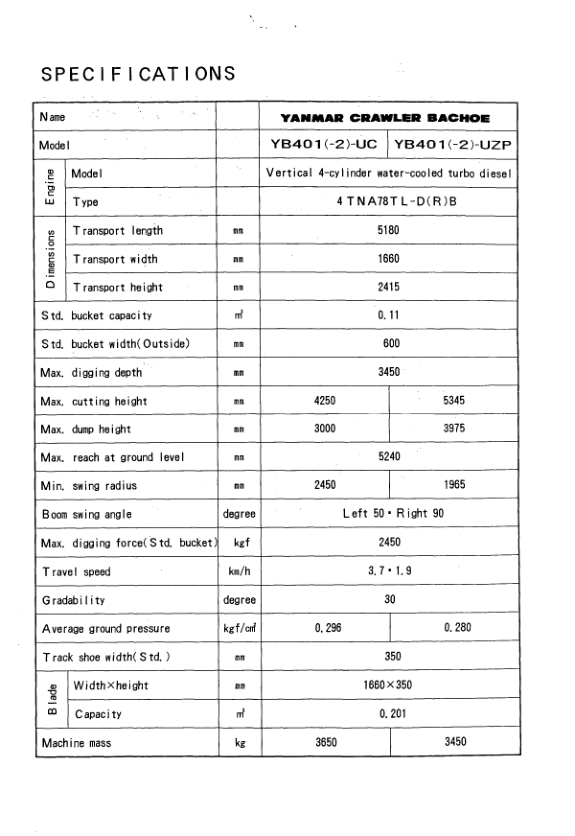

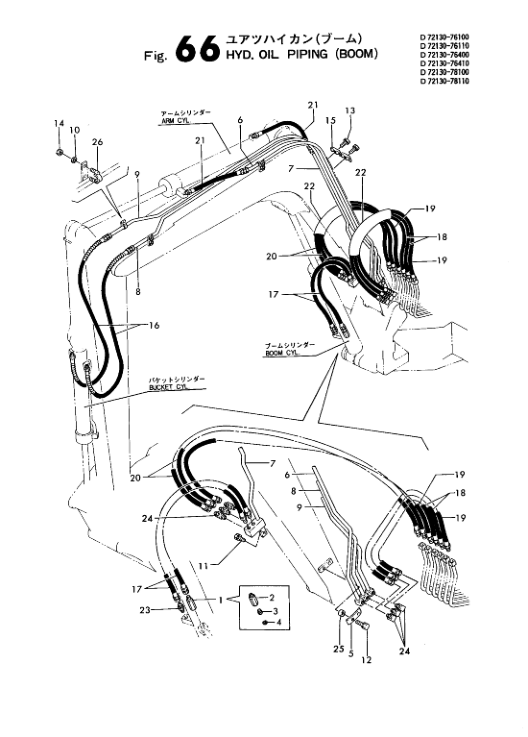

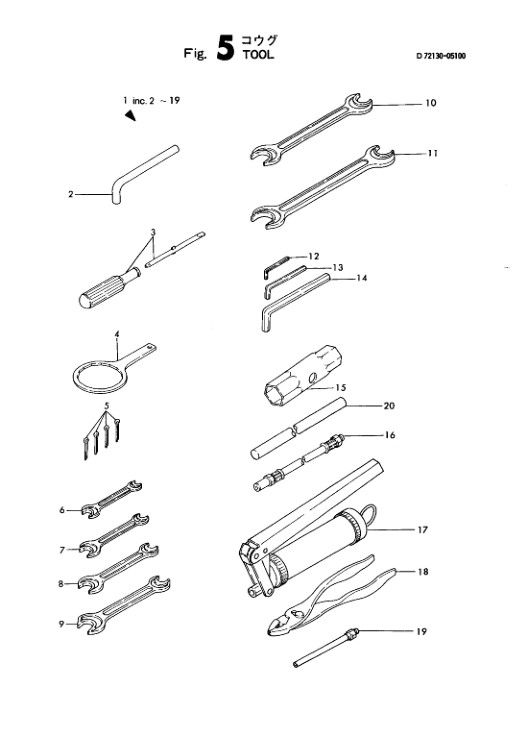

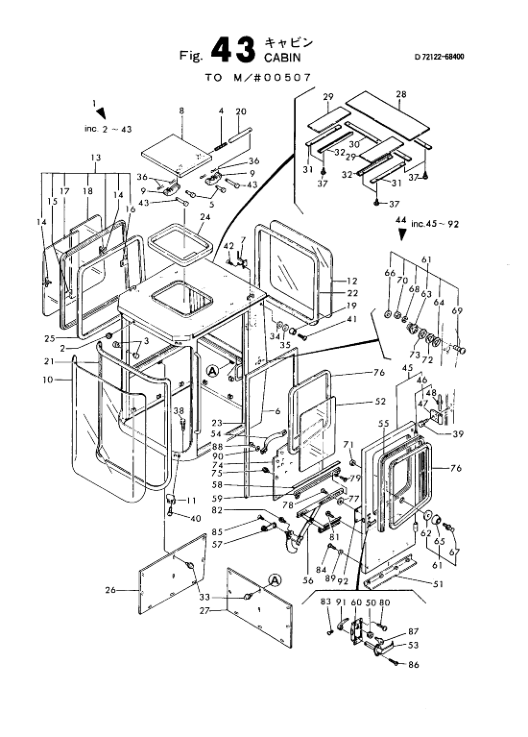

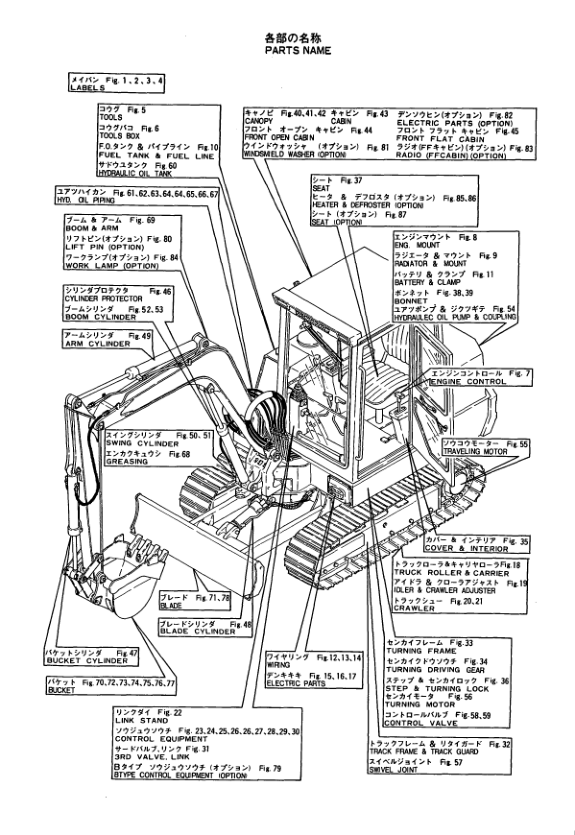

- Comprehensive Parts Catalog: Includes illustrated breakdowns of all assemblies, allowing for accurate part identification and verification of OEM specifications during maintenance.

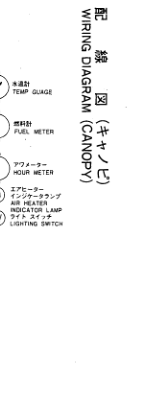

- System-Specific Schematics: Contains detailed electrical wiring diagrams that map component connections, wire colors, and sensor locations for the Yanmar YB401 U electrical architecture.
- Technical Documentation: Provides modular system layouts, enabling systematic troubleshooting of hydraulic and electrical failures by providing a clear visual reference of the entire machine circuit.
This PDF resource offers the technical clarity necessary for engine, hydraulic, and structural maintenance. By providing direct access to manufacturer-verified diagrams and parts lists, it eliminates guesswork during repairs and ensures compliance with factory assembly standards for the Yanmar YB401 U excavator.
