Description
Yanmar B22 UK AS Excavator Parts Catalog Wiring Diagram reduces diagnostic downtime by providing technicians with exact component identification and precise electrical routing paths. This technical document allows for rapid parts cross-referencing to ensure accurate component replacement for the B22 UK AS model series.

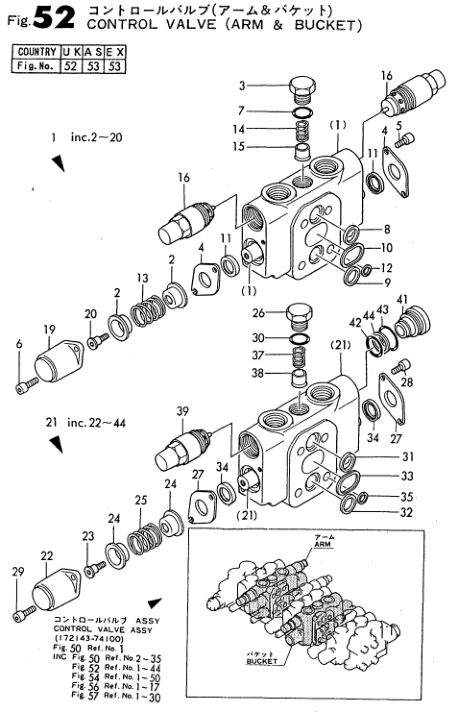

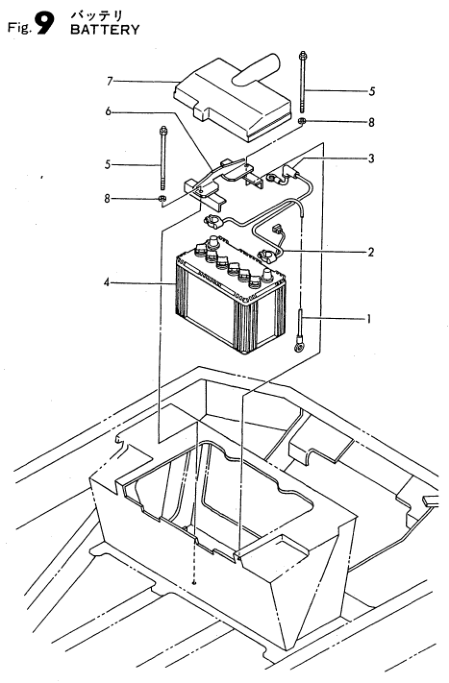

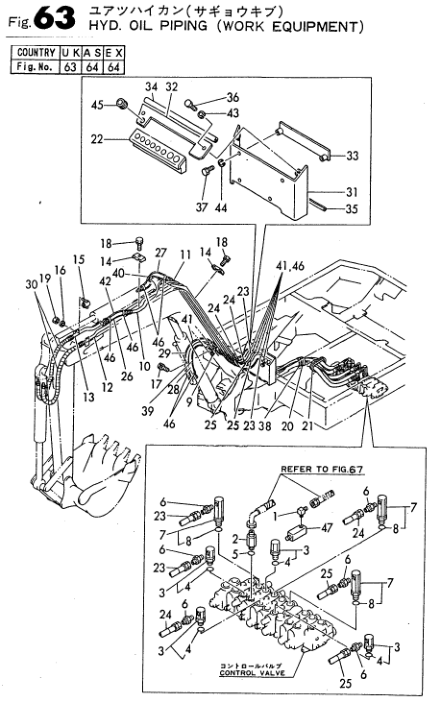

- Comprehensive Parts Catalog: Includes illustrated breakdowns and official part numbers to eliminate ordering errors and facilitate exact hardware matching for complex mechanical repairs.

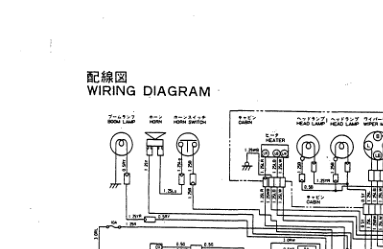

- Detailed Electrical Wiring Diagrams: Features granular circuit mapping and system layouts to simplify fault tracing within the excavator electrical architecture.
- System Specific Coverage: Provides focused schematics and technical layouts engineered specifically for the electrical configurations found in the UK AS variant.
These manuals provide the necessary technical intelligence to maintain operational readiness on the job site. The schematics detail component connections and system layouts, allowing personnel to navigate integrated electrical systems with speed and accuracy. This documentation serves as a critical reference tool for both field service technicians and workshop repair staff managing Yanmar B22 equipment.
