Description
Wacker Neuson 701 s 701 sp Compact Loaders Service Manual v2.0 provides technicians with the precise technical data required to execute complex repairs and routine maintenance. This documentation reduces diagnostic downtime by offering factory-recommended procedures for engine calibration, hydraulic system troubleshooting, and drivetrain diagnostics.
- Comprehensive Component Analysis: Detailed instructions for the disassembly and reassembly of major powertrain units ensure that mechanical tolerances remain within original equipment manufacturer specifications.

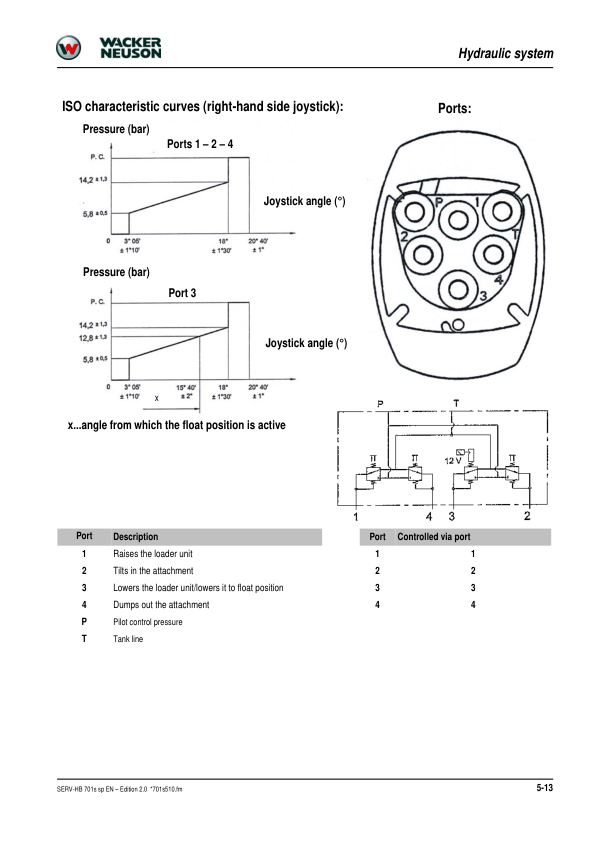

- Hydraulic System Schematics: Precise circuit layouts allow for rapid identification of pressure drops, valve malfunctions, and cylinder seal degradation in both the 701 s and 701 sp models.

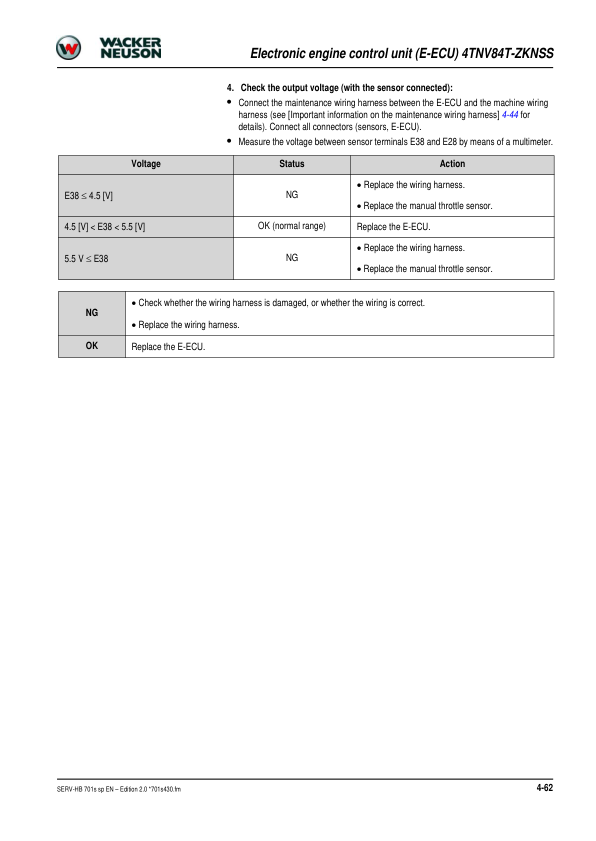

- Integrated Electrical Troubleshooting: Step-by-step wiring diagrams assist in the rapid isolation of sensor faults and relay issues, preventing unnecessary parts replacement during electrical service.
This manual serves as the primary technical resource for maintenance personnel performing interval services or emergency repairs. The structured format promotes operator safety and equipment longevity by ensuring all service tasks align with established Wacker Neuson engineering protocols.
