Description

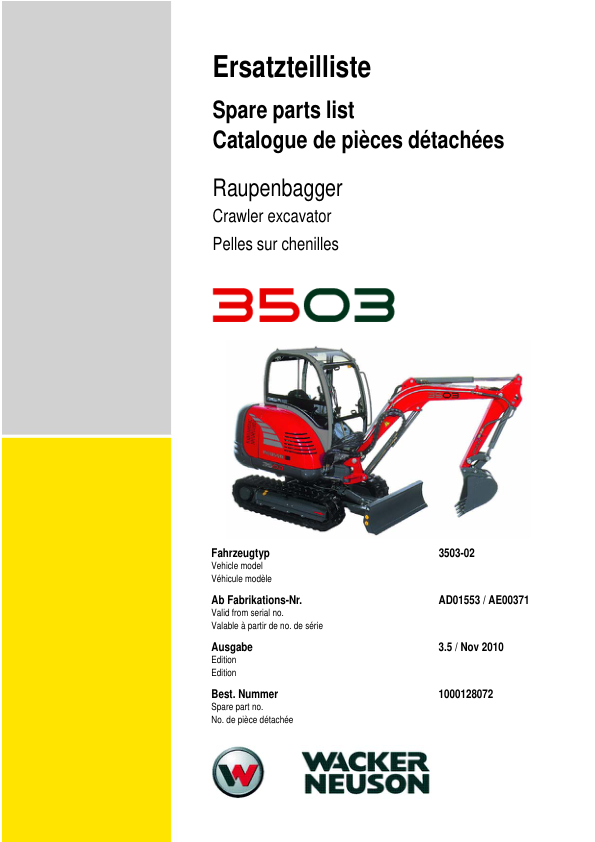

Wacker Neuson 3503-02 Excavator Parts Catalog SN from AD01553 AE00371 v3.5 provides technicians and fleet managers with the exact component data required to maintain machine uptime. This comprehensive catalog eliminates guesswork by supplying verified part numbers and assembly configurations specific to serial number ranges AD01553 and AE00371. Accessing accurate data prevents ordering errors and reduces machine downtime during critical repair cycles.

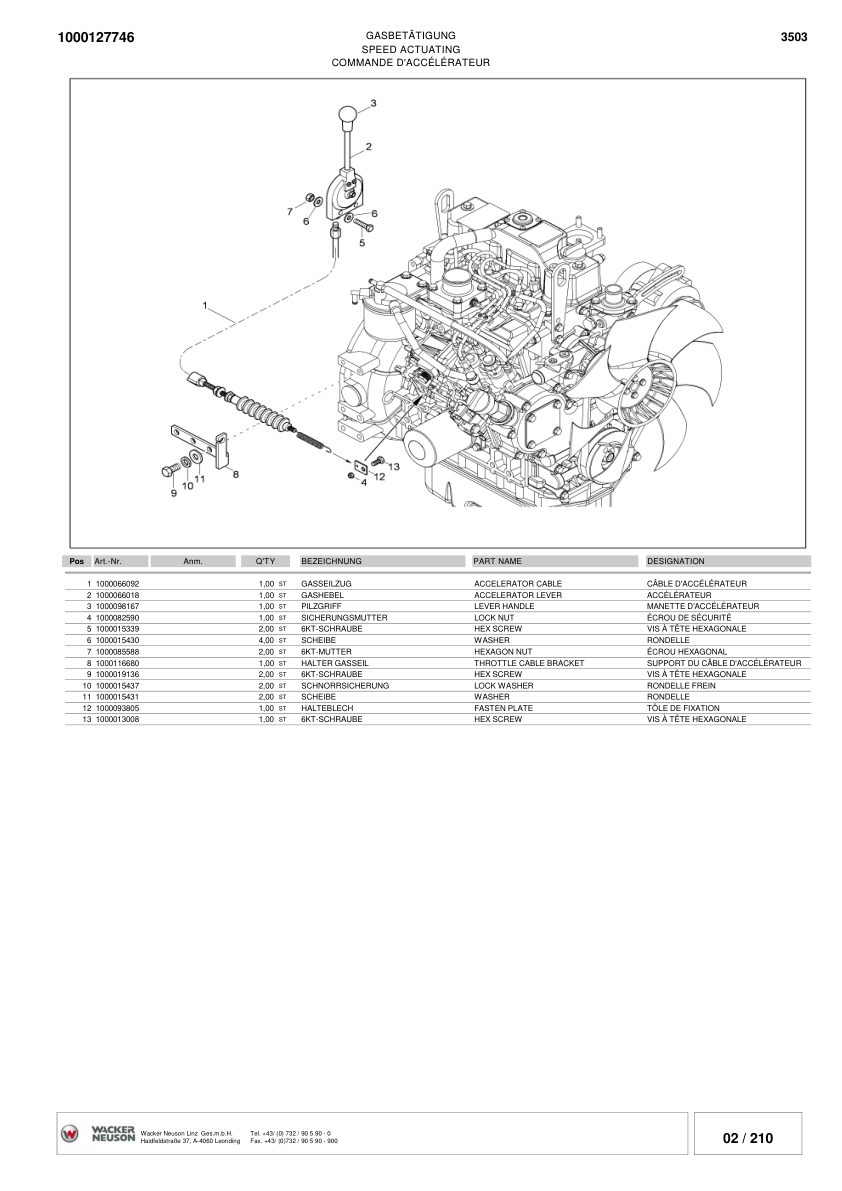

- Illustrated Exploded Views: Detailed assembly diagrams allow users to visualize component connections and hardware placement for faster reassembly.

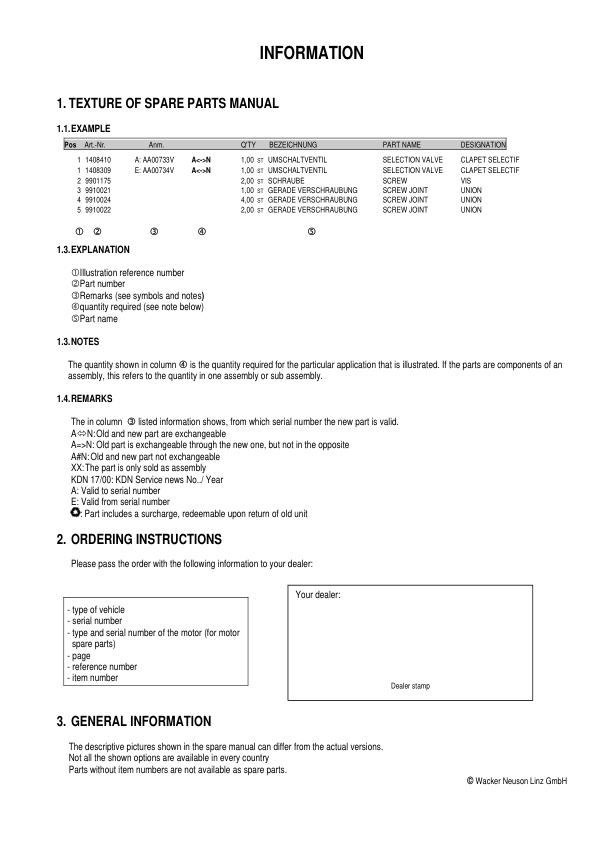

- OEM Part Number Index: Verifying individual component numbers ensures compatibility with original Wacker Neuson specifications.
- System-Wide Coverage: The manual includes all major sub-assemblies including hydraulic pumps, engine mounting, and undercarriage components for the 3503-02 model.
This digital documentation serves as a reference for maintenance personnel performing routine service or complex component replacement. By utilizing the specific serial number range, technicians obtain precise information that prevents the installation of incorrect or incompatible parts. The structured data ensures that your service workflow remains efficient and technically sound.
