Description

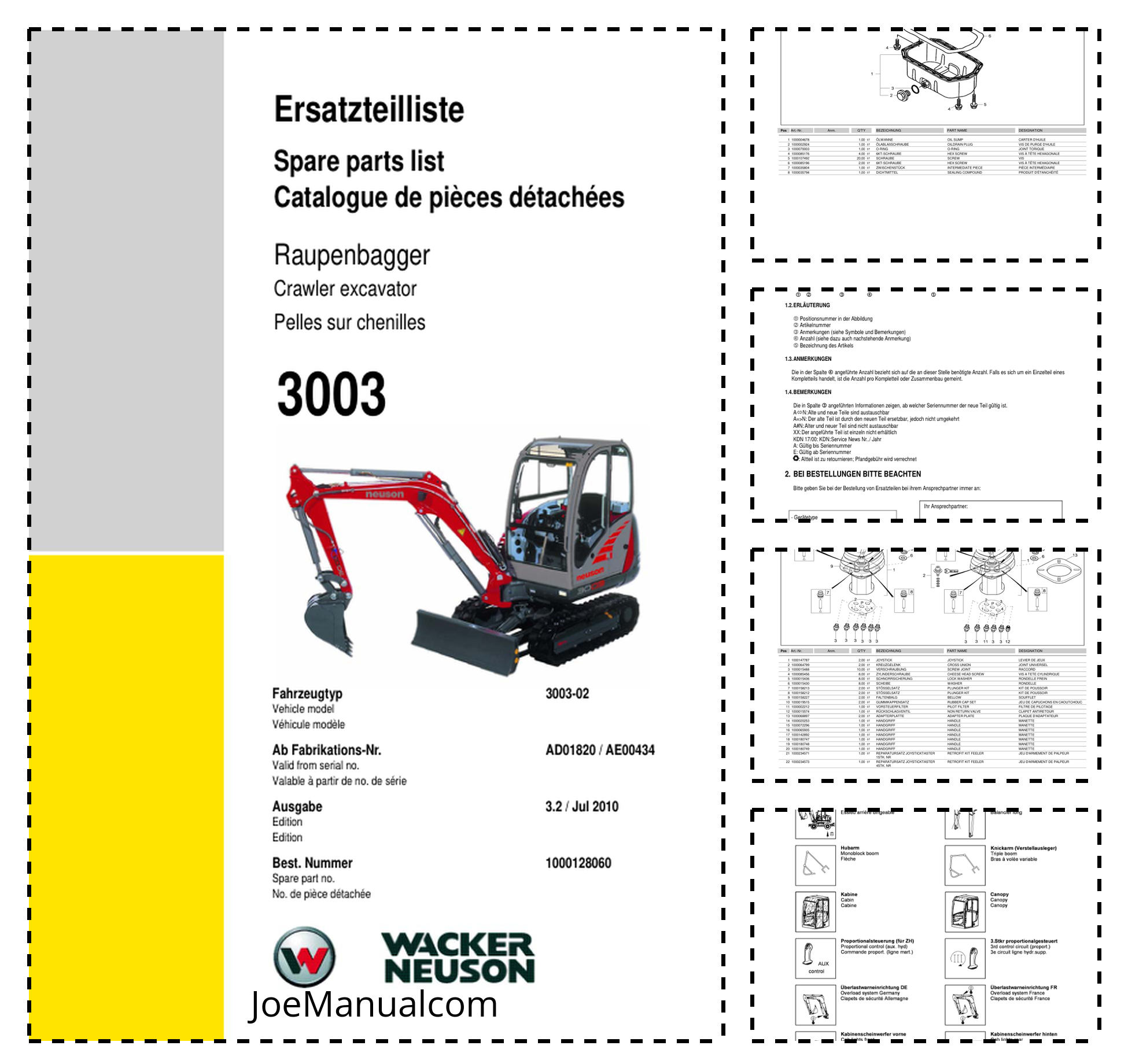

Wacker Neuson 3003 Crawler Excavator Parts Catalog SN from AD01820 AE00434 v3.2 ensures precise component identification for units within this specific serial number range. Technicians utilize this manual to reduce downtime during repairs by accessing accurate, manufacturer-verified part numbers and assemblies. The catalog eliminates guesswork, allowing for exact ordering of OEM components and ensuring compatibility with the hydraulic, engine, and structural configurations inherent to the 3003 excavator series.

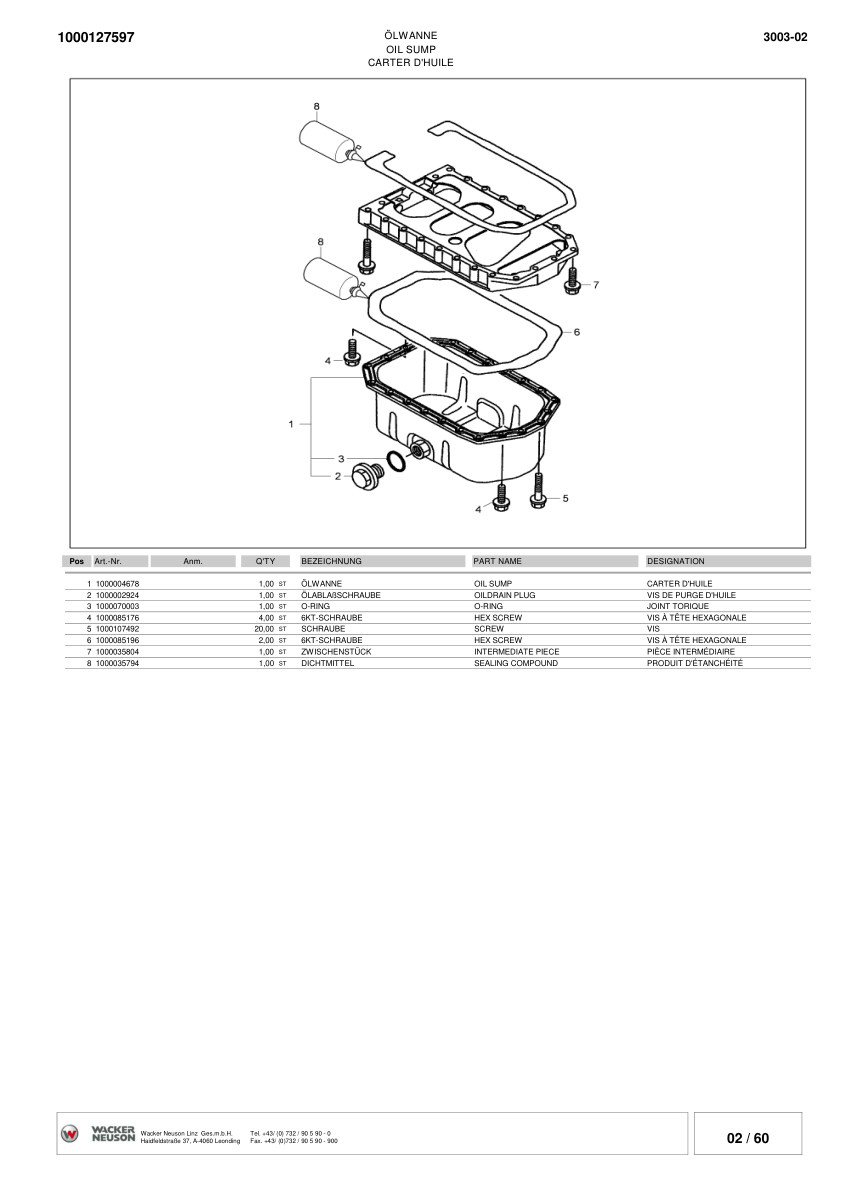

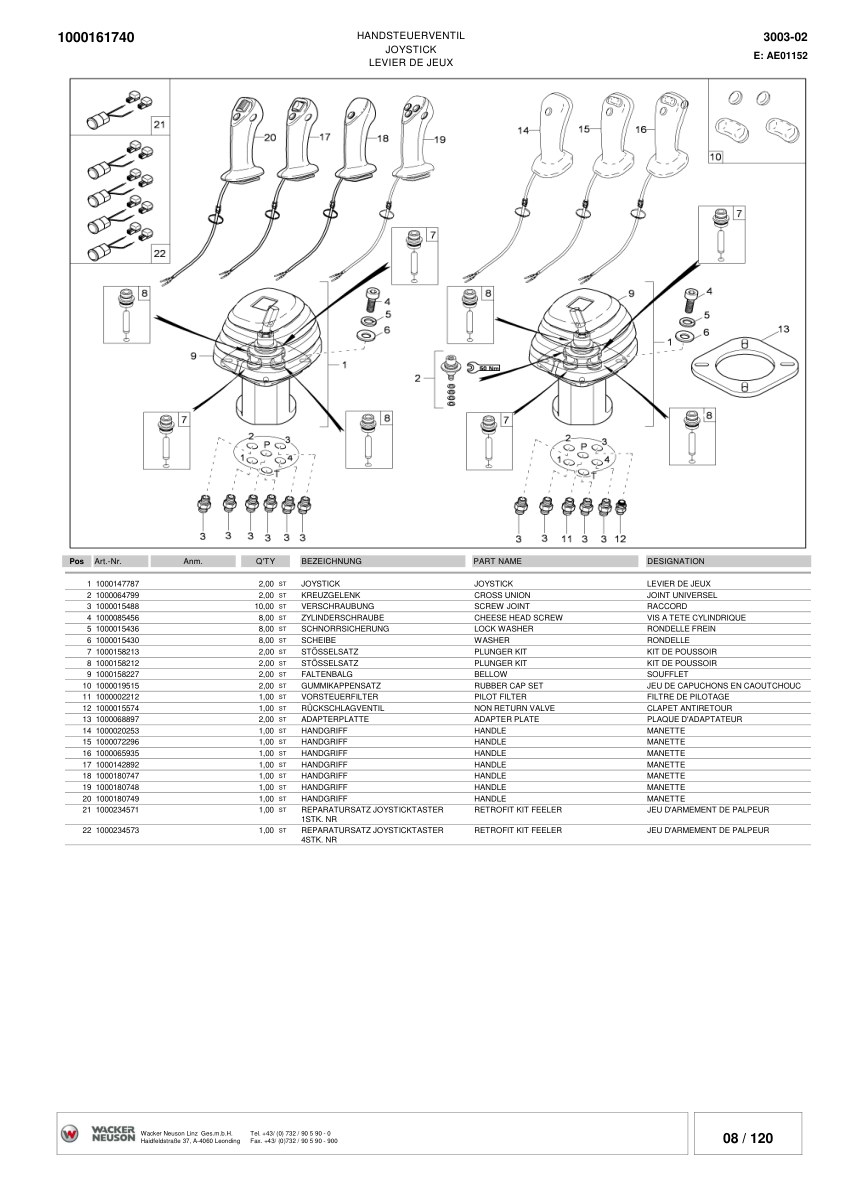

- Expanded Exploded Views: Detailed diagrams illustrate the assembly order of internal components, which simplifies the reinstallation process and prevents incorrect part placement.

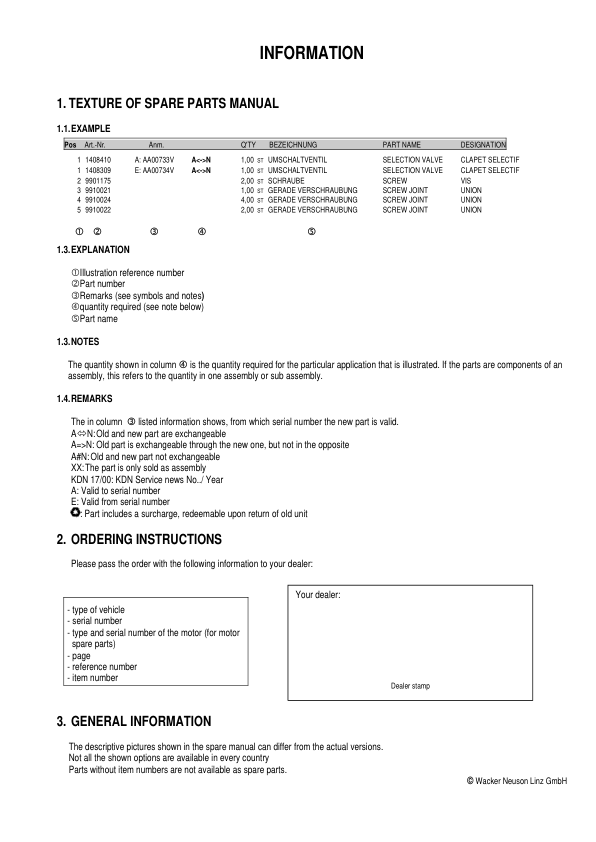

- Comprehensive Part Index: The document lists every individual piece with its corresponding reference number, enabling quick cross-referencing against existing hardware or worn parts.
- System-Specific Coverage: Content spans critical assemblies including the undercarriage, swing gear, and engine cooling systems, providing targeted information for specialized maintenance tasks.
This digital documentation serves as a direct technical reference for service personnel and equipment managers. By utilizing the factory-standard catalog, users ensure that every replacement part meets the required specifications for the Wacker Neuson 3003 crawler excavator, maintaining optimal machine performance and long-term operational integrity.
