Description

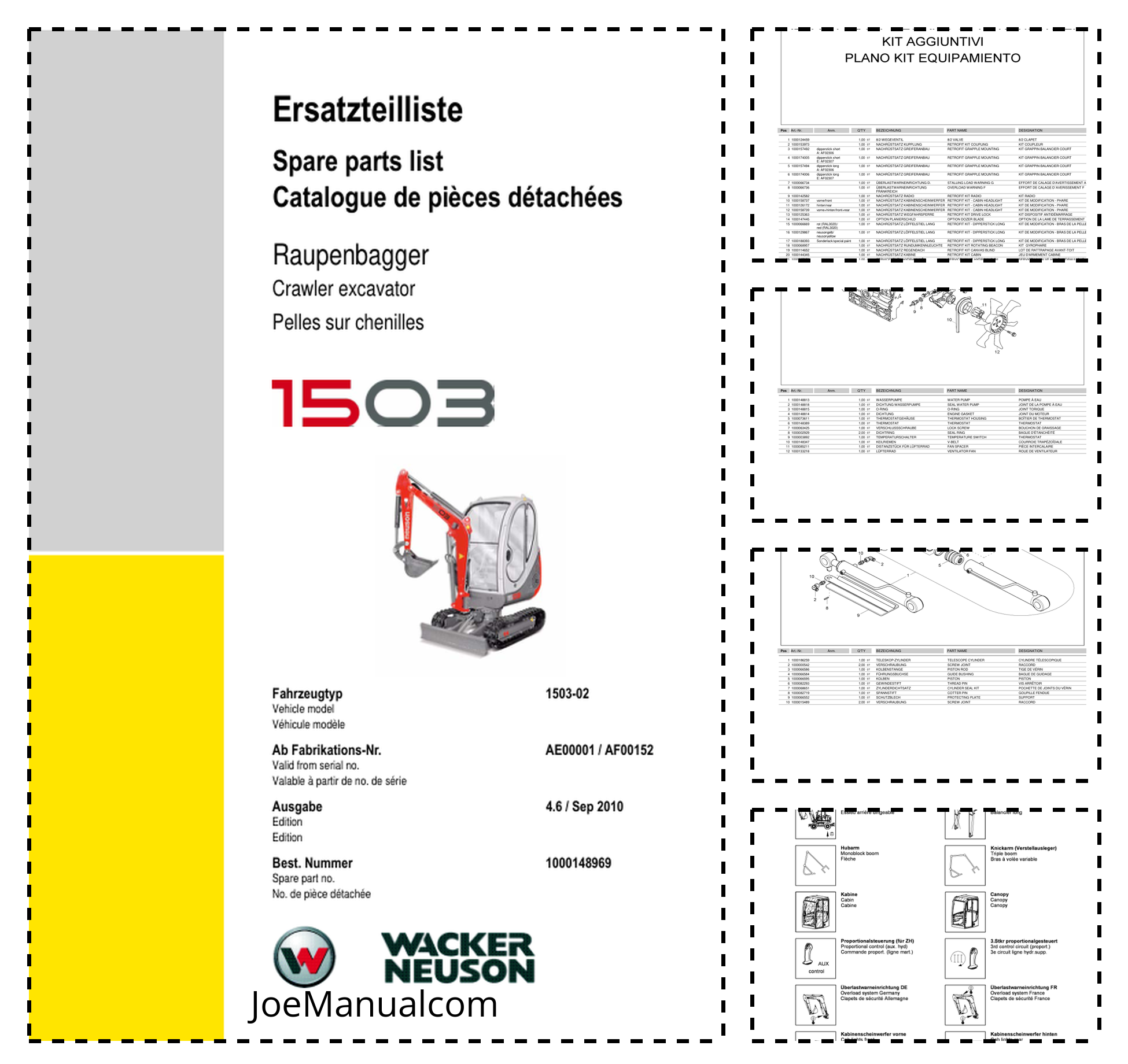

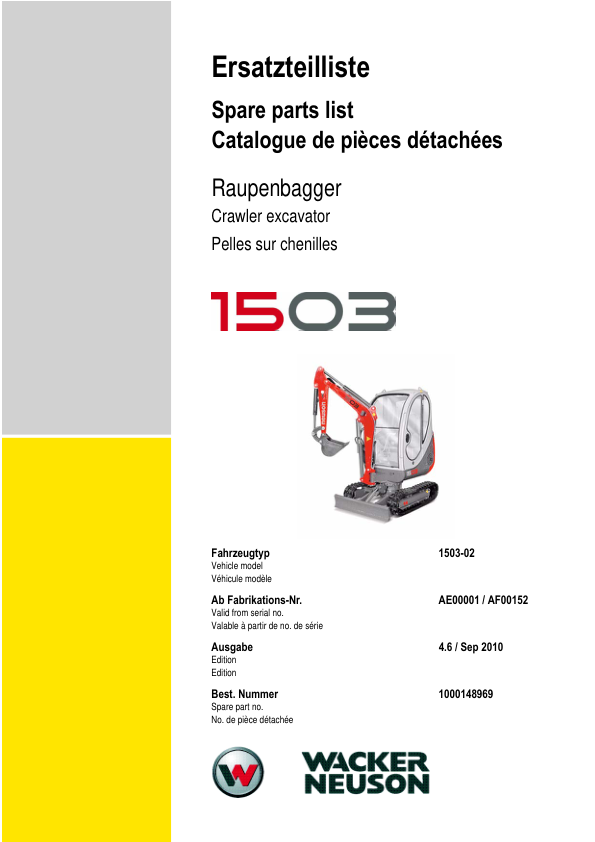

Wacker Neuson 1503 Crawler Excavator Parts Catalog SN from AE00001 AF00152 v4.6 provides precise identification of every component required for maintenance and repair tasks. This manual ensures technicians source the correct replacement parts by referencing the exact serial number range AE00001 through AF00152. Accurate part selection eliminates procurement errors and minimizes equipment downtime during critical servicing windows.

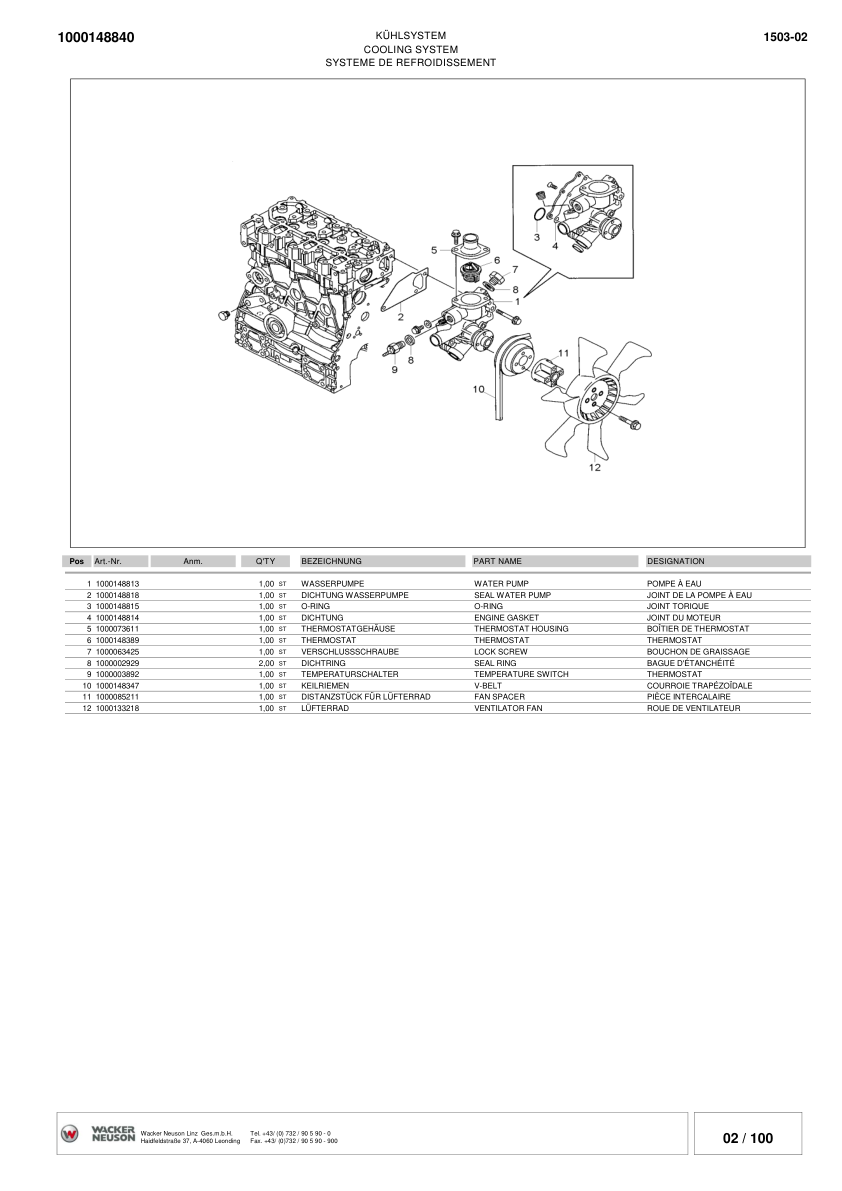

- Expanded Exploded Views: Detailed visual diagrams assist in the accurate assembly and disassembly of hydraulic and mechanical sub-systems.
- OEM Part Number Referencing: Direct access to factory-specified part numbers simplifies the ordering process for distributors and service departments.
- Comprehensive System Coverage: Includes specific lists for engine components, hydraulic circuits, and undercarriage assemblies required for the 1503 model series.
This technical catalog serves as an essential resource for field technicians and warehouse managers seeking to maintain operational integrity. By utilizing factory-authorized data, service personnel ensure that every repair meets original manufacturer specifications for fit and function. Rely on this documented technical guidance to streamline logistics and accelerate the repair process for Wacker Neuson excavators.
