VOLVO Buses Wiring Diagram B9S BODY 8500 with D9B (chno 141789-)

10 $

Manual Type: Service Manual, Electrical Wiring Diagrams

Brand: Volvo

Number Pages: 160

Document size: 6,1MB

Format: PDF

Language: English

Digital product. Available for instant download after payment.

If you are unsure if this manual will be suitable for your machine or if you need more information about it before purchasing, please contact us.

Description

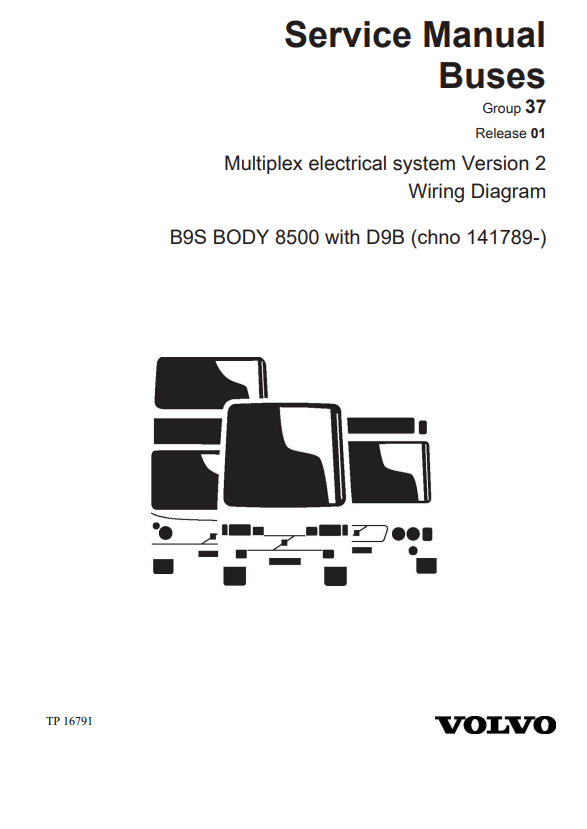

This wiring diagram manual provides detailed electrical schematics for Volvo Buses B9S with the 8500 body model, equipped with D9B engines, starting from chassis number 141789. It includes comprehensive layouts of electrical systems, connections, and component locations. The manual is crucial for diagnosing and repairing electrical issues, ensuring proper maintenance and troubleshooting. This document is essential for technicians and electricians to ensure the efficient and safe operation of the bus’s electrical systems.
